Access Control Readers

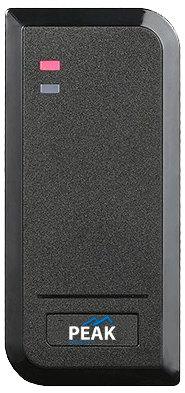

Waterproof Wiegand Reader - PEAKS2-R

peaks2-r
Output Format: Wiegand 26 ~ 37 bits output (default: 26 bits) Card Type: 125KHz EM and HID card Reading Range: 7cm Frequency: 125KHz Standby Current: < 25mA Operating Voltage: 9 ~ 24VDC Operating Temperature: -40°C ~ 60°C (-40°F ~ 140°F) Operating Humidity: 10% ~ 95% RH Dimensions: 4” ( ...Read more



Downloads Spec Sheet
  • Description
  • Specifications
  • Output Format: Wiegand 26 ~ 37 bits output (default: 26 bits)
  • Card Type: 125KHz EM and HID card
  • Reading Range: 7cm
  • Frequency: 125KHz
  • Standby Current: < 25mA
  • Operating Voltage: 9 ~ 24VDC
  • Operating Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
  • Operating Humidity: 10% ~ 95% RH
  • Dimensions: 4” (L) x 1.9” (W) x 0.75” (D)
Width: 1.9 in
 Length: 4 in
 Height: 0.75 in
