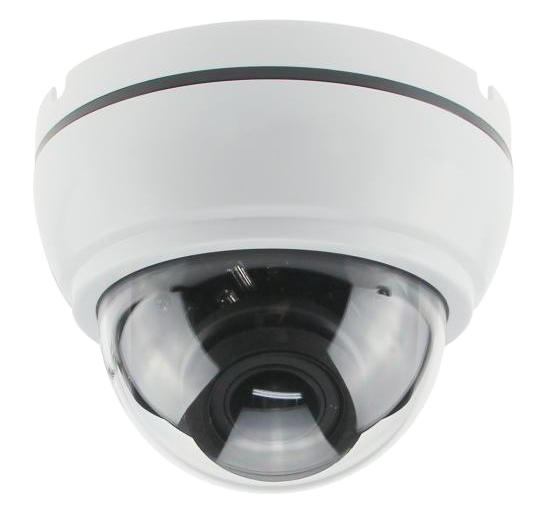

HD Varifocal IR Dome Camera - PEAKMD2V2812R1

peakmd2v2812r1
Image Resolution: 1080P OSD selectable multiformat video output: TVI/AHD/CVI/CVBS 960H Lens: 2.8 - 12mm Varifocal IR Range: 20M Voltage: 12VDC+/-10% Image Sensor: 1/2.8” SONY Starvis Back-Illuminated CMOS Sensor Power Consumption: 300mA Features: IR, IR Cut Filter, WDR, OSD, UTC, AES, DNR, ...Read more

Type
Image Resolution
Lens
IR LEDs
Voltage
Current
Day/Night
OSD Display
WDR
Sense-Up


Downloads Spec Sheet
  • Description
  • Specifications
  • Image Resolution: 1080P
  • OSD selectable multiformat video output: TVI/AHD/CVI/CVBS 960H
  • Lens: 2.8 - 12mm Varifocal
  • IR Range: 20M
  • Voltage: 12VDC+/-10%
  • Image Sensor: 1/2.8” SONY Starvis Back-Illuminated CMOS Sensor
  • Power Consumption: 300mA
  • Features: IR, IR Cut Filter, WDR, OSD, UTC, AES, DNR, Low Illuminations
  • Operation Temperature: 14°F - 122°F (-10°C - 50°C RH95% Max)
