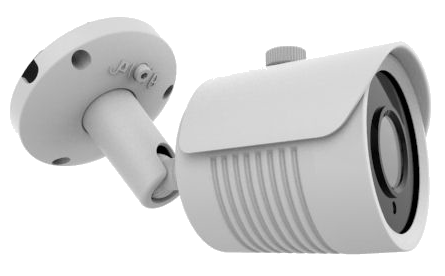

5MP IP Bullet Camera - PEAKIPBC5F136

peakipbc5f136_832611056
Image Sensor: 1/2.8” SONY Starvis Back-Illuminated CMOS Sensor Resolution: 5MP Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG Minimum Illumination: 0.01Lux S/N Ratio: ≥ 52dB Scanning System: Progressive Focus Length: 3.6mm Infrared Distance: 30M Ethernet: RJ45 (10/100Base-T) Pr ...Read more

Type
Image Resolution
Lens
Voltage
Current
Day/Night
OSD Display
WDR
Sense-Up


Downloads Spec Sheet
  • Description
  • Image Sensor: 1/2.8” SONY Starvis Back-Illuminated CMOS Sensor
  • Resolution: 5MP
  • Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG
  • Minimum Illumination: 0.01Lux
  • S/N Ratio: ≥ 52dB
  • Scanning System: Progressive
  • Focus Length: 3.6mm
  • Infrared Distance: 30M
  • Ethernet: RJ45 (10/100Base-T)
  • Protocol: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP
  • ONVIF: Support ONVIF 2.4
  • Housing: Metal, IP66
  • Anti-cut Bracket: Yes
  • IR Cut Filter: Yes
  • Operation Temperature: -20°C ~ +60°C RH95% Max
  • Power Source: DC12V±10%, 700mA



To download the installation software, click here!

In order to operate the software, follow these instructions:

  1. Click the download icon in the top right corner of the screen.
  2. Click "Download Anyway" if prompted.
  3. Save to computer.
  4. Extract files to desired location on computer.
  5. Click the "autorun.exe" file to open.
