Network Switches

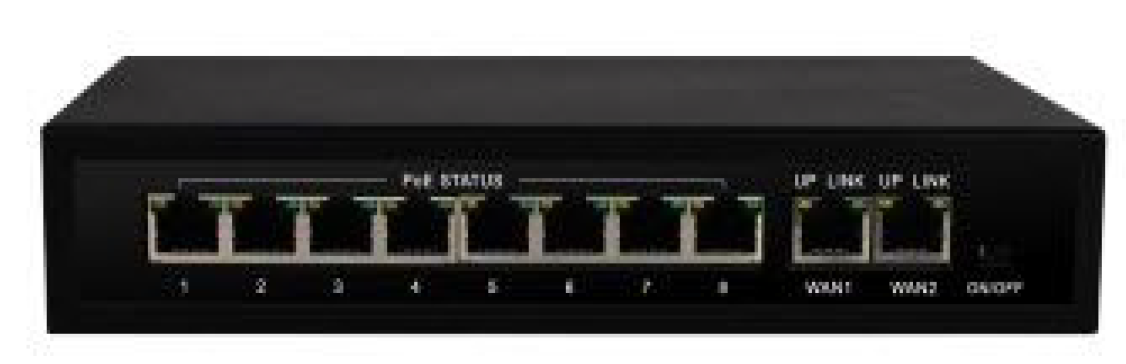

POE Ethernet Switch - PEAKNS812

peakns812
Power: Power Adapter Voltage Input 110-240V/AC 50-60Hz 5           Maximum power supply machine 100W Protection Level: Mould + -4KV, Differntial mode + -1KV Network Connector: Network Port :1-8 port:: 10/100Mbps PoE Ethernet LAN port                              WAN1/WAN2 port: 10/100/1000Mbps E ...Read more



Downloads Spec Sheet
  • Description
  • Specifications
  • Power: Power Adapter Voltage Input 110-240V/AC 50-60Hz 5
               Maximum power supply machine 100W
  • Protection Level: Mould + -4KV, Differntial mode + -1KV
  • Network Connector: Network Port :1-8 port:: 10/100Mbps PoE Ethernet LAN port
                                  WAN1/WAN2 port: 10/100/1000Mbps Ethernet WAN port
  • Network Switch: 1536 Bytes, 2K, 1Gbps, IEEE802.3af/at
  • Power Over Ethernet: End-Span(4/5+;7/8-), af, at Adaptive (every port)
  • LED Status Indicator: When the PoE is powered, 1-8 LEDs are green
                                   When accessing Ethernet, ports 1-8 are yellow
  • Mechanical: Dark Gray, SECC, 1.4KG, 220*140*40
  • Environmental: Working humidity 10%-90% non-condensing
                          Storage humidity 5%-95% RH non-condensing
  • Stability: MTBF > 30000h
